FANTINELLI Srl

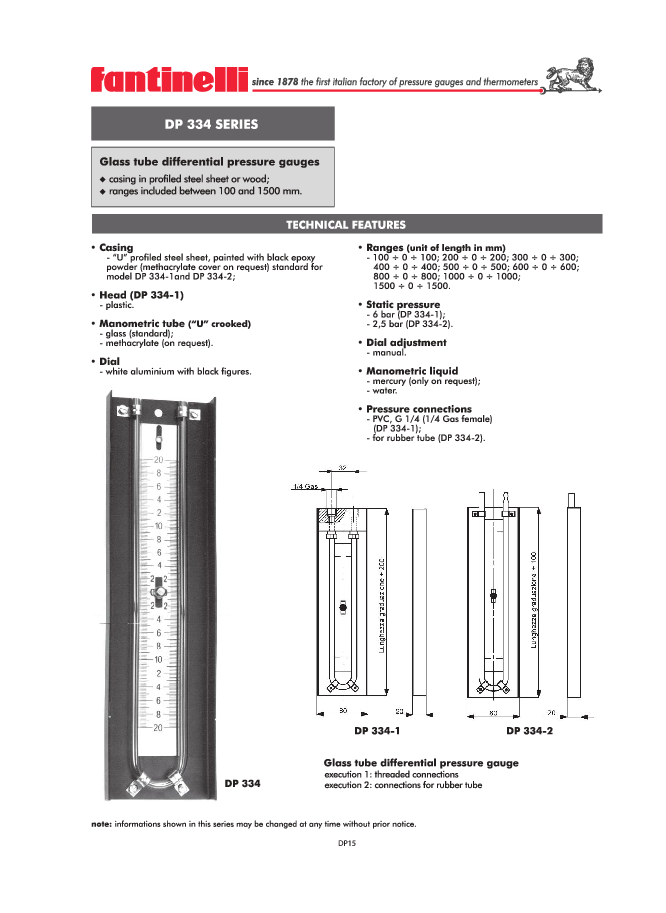

Glass tube differential pressure gauges

Manometro differenziale a tubo di vetro
DP 334

• Casing

- “U” profiled steel sheet, painted with black epoxy powder (methacrylate cover on request) standard for model DP 334-1and DP 334-2;


• Head (DP 334-1)

- plastic.


• Manometric tube (“U” crooked)

- glass (standard);

- methacrylate (on request).


• Dial

- white aluminium with black figures.


• Ranges (unit of length in mm)

- 100 ÷ 0 ÷ 100; 200 ÷ 0 ÷ 200; 300 ÷ 0 ÷ 300; 400 ÷ 0 ÷ 400; 500 ÷ 0 ÷ 500; 600 ÷ 0 ÷ 600; 800 ÷ 0 ÷ 800; 1000 ÷ 0 ÷ 1000; 1500 ÷ 0 ÷ 1500.


• Static pressure

- 6 bar (DP 334-1);

- 2,5 bar (DP 334-2).


• Dial adjustment

- manual.


• Manometric liquid

- mercury (only on request);

- water.


• Pressure connections

- PVC, G 1/4 (1/4 Gas female) (DP 334-1);

- for rubber tube (DP 334-2).


Glass tube differential pressure gauges

  • casing in profiled steel sheet or wood;
  • ranges included between 100 and 1500 mm.
